Galvanized Steel Defensive Barrier Wall 4mm Wire Mesh

Brand Name : KN

Model Number : KN-D05

Certification : ISO CE

Place of Origin : Hebei,China

MOQ : 10 pcs

Price : USD 13.88-USD 29.98

Payment Terms : T/T,Western Union,L/C

Supply Ability : 10000 pcs/month

Delivery Time : 7-15 days

Packaging Details : Wooden pallets

Spring Wire Diameter : 3.0MM, 4.0mm

Features : Strong, Anti-Rust

Packing : pallet or carton

Durability : Highly durable and long-lasting

Material : High-strength composite materials

Mesh Diameter : 4.0mm Diameter Wire

Advantage : Easy Assembled

Panel Size : 0.61m x0.61m, also can be customized

Key Words : Defensive barrier bastion

Weight : Lightweight and easy to carry

Accesssories : geotextile

Wire Diameter : 4mm,5mm

Spring Diameter : 4.0mm

Hole Size : 76.2X76.2mm

Contact Now

Army Defensive Barrier Wall Supplier 5.0mm 20m Defense Bastion Flood Barrier Defensive Barrier Boxes

Product description

Defense Barrier/Blast Wall/Welded Gabion with geotechnical cloth also know as Rock basket retaining wall, defensive barrier, flood control barrier, etc. which is made of the steel
welded mesh and lined with non-woven geotextile , can be filled with sand, earth, cement, stone, then as a defence wall or bunker and widely used in the special circumstances to protect safety .

Features of Defensive Barriers
A pre-fabricated gabion of galvanized welded â€“mesh steel fitted with a UV-protecting.
Polypropylene geotextile liner.
Filling material is an easy- obtained mix of sand and small stones.
It can be used together to any length, and can be stacked for additional height.

Application
landscaping, as retaining walls, landscape urban landscape and parks.
or high salt pollution in the environment, Gore can be used where welded wire mesh technology.
within the welded wire mesh filled with stone or natural cobblestone highway together protection, slope, roadway, bridge and so on.
welded wire mesh is widely used in earth or soil reinforcement such as desertification, slope protection, river, coastal protection, reservoirs, canals and pipelines renovation, Rock failure protection, bridge protection, protective net.

Product details
We supply customized any sizes you need !
  MODEL
 HEIGHT
 WIDTH
 LENGTH
 WEIGHT
 No. of CELLS

 KN 1
 4'6"(1.37m)
 3'6"(1.06m)
 32'9"(10m)
 149(kg)
 9
  1*4+1*5cells

 KN 2
 2'(0.61m)
 2'(0.61m)
 4'(1.22m)
 10(kg)
 2
 1*2 Cells

 KN 3
 3'3"(1.00m)
 3'3"(1.00m)
 32'9"(10m)
 113(kg)
 10
 2*5 Cells

 KN 4
 3'3"(1.00m)
 5'(1.52m)
 32'9"(10m)
 155(kg)
 10
 2*5 Cells

 KN 5
 2'(0.61m)
 2'(0.61m)
 10'(3.05m)
 22(kg)
 5
 1*5 Cells

 KN 6
 5'6"(1.68m)
 2'(0.61m)
 10'(3.05m)
 66(kg)
 5
 1*5 Cells

 KN 7
 73"(2.21m)
 7"(2.13m)
 91'(27.74m)
 936(kg)
 13
 2*4+1*5cells

 KN 8
 4'6"(1.37m)
 4'(1.22m)
 32'9"(10m)
 153(kg)
 9
 1*4+1*5cells

 KN 9
 3'3"(1.00m)
 2'6"(0.76m)
 30'(9.14m)
 101(kg)
 12
 2*6cells

 KN 10
 7'3"(2.21m)
 5(1.52m)
 100'(30.50m)
 1040(kg)
 20
 4*5cells

 KN 12
 84"(2.13m)
 42"(1.06m)
 108(33m)
 813(kg)
 30
 6*5cells

 KN 19
 108"(2.74m)
 42"(1.06m)
 10'5"(3.18m)
 198(kg)
 6
 1*6cells



Product advantages
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finishit.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.

Our workshop
 Welcome contact Lisa!

Product Tags:

galvanized steel defensive barrier

4mm wire mesh wall

steel wire mesh barrier

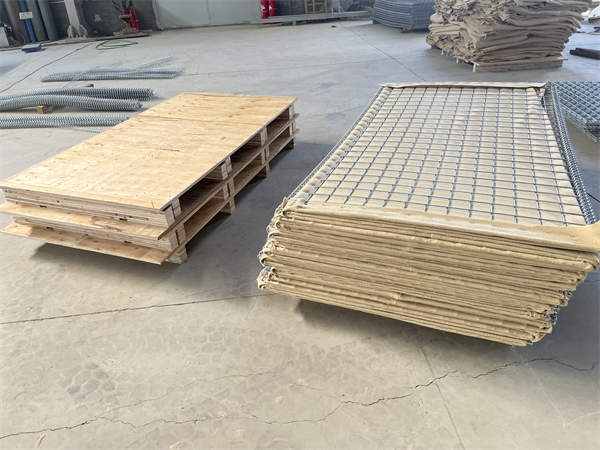

Galvanized Steel Defensive Barrier Wall 4mm Wire Mesh Images
